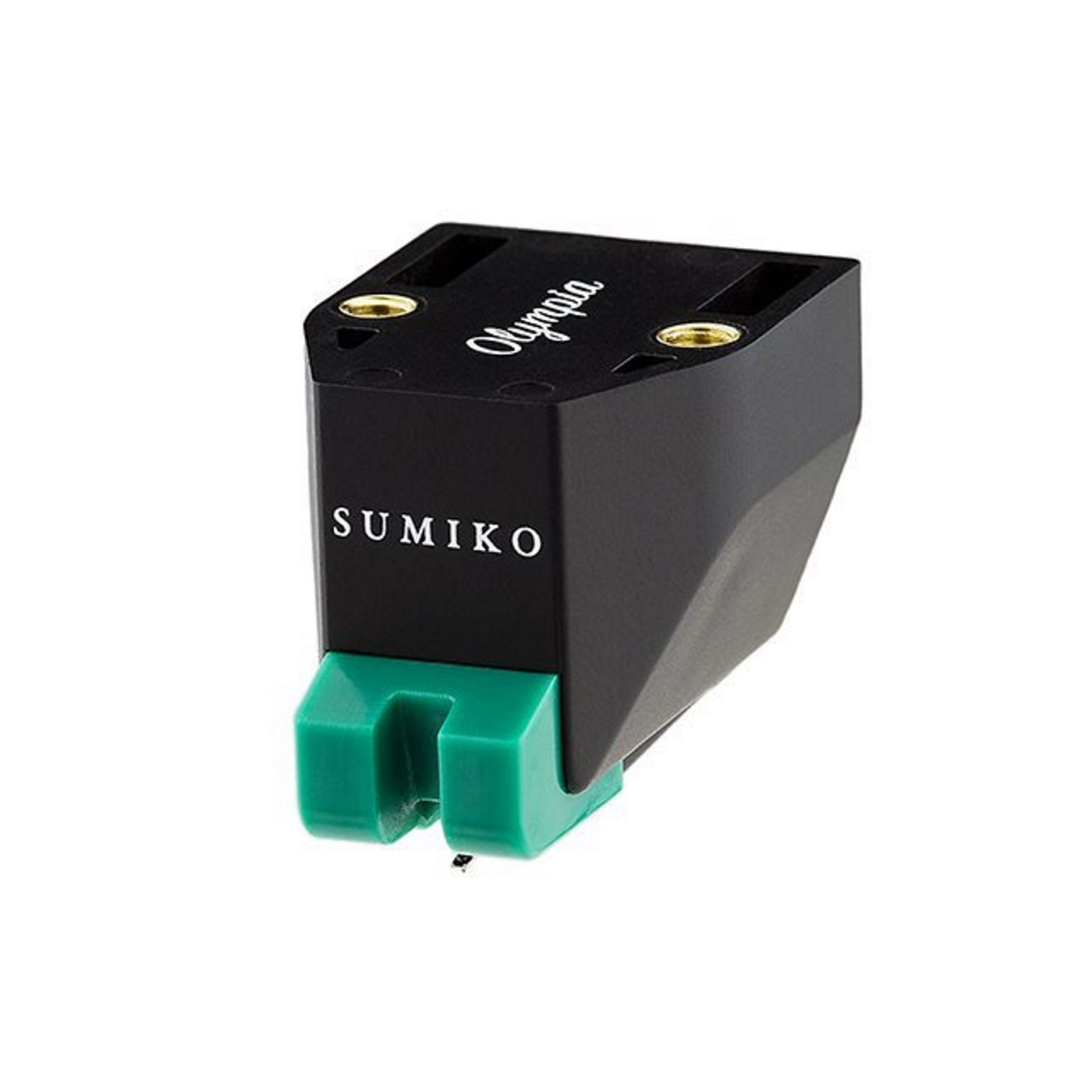

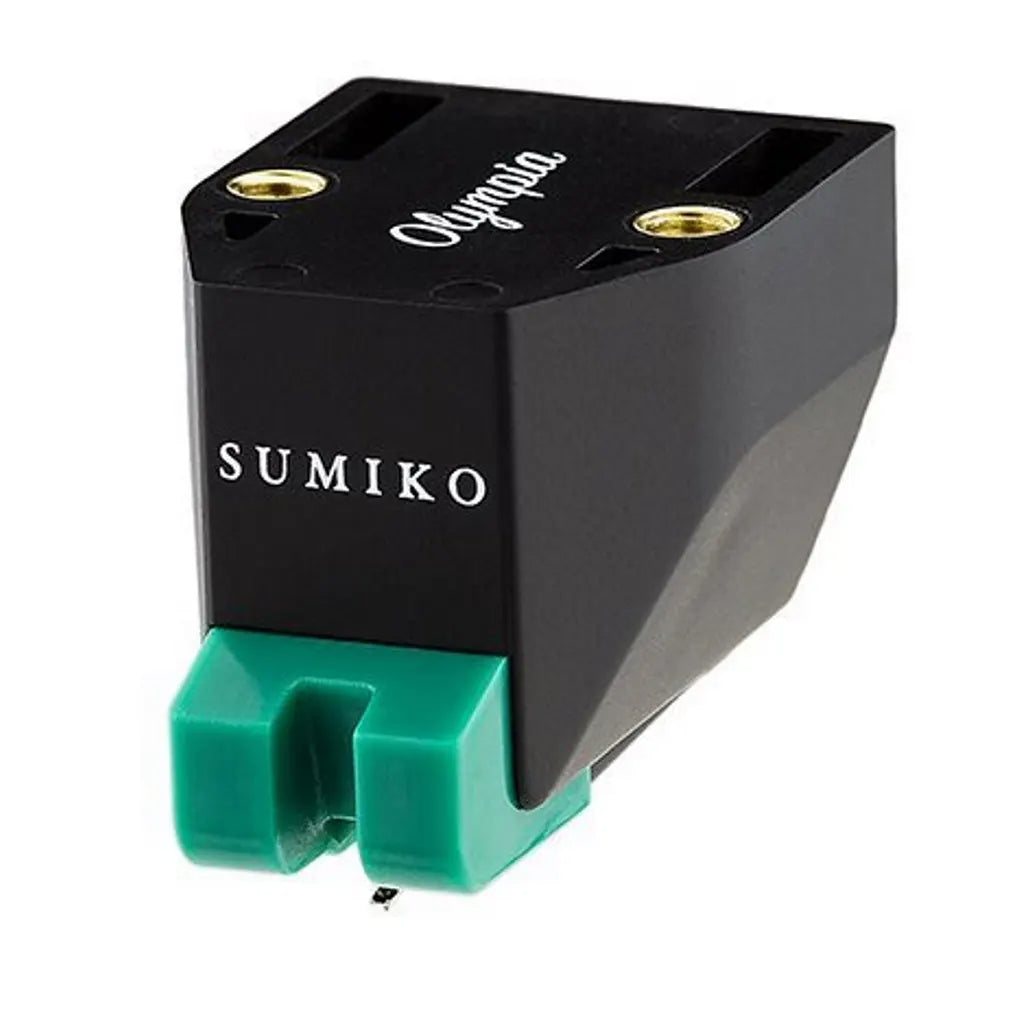

Sumiko Olympia MM Cartridge
SUMIKO OLYMPIA HIGH OUTPUT MM CARTRIDGE
Details:
The Olympia brings another level of acoustic refinement to the mix with an upgraded stylus and cantilever assembly, allowing for more dynamic punch and improved frequency response during playback. Due to its improved tracking capabilities, the Olympia is an excellent return on investment when upgrading from the Rainier cartridge, and can even be upgraded to the capable Moonstone stylus further on down the line.
Specifications:
- Cartridge Type: Moving Magnet
- Stylus: 0.3 x 0.7 micron Elliptical
- Cantilever Material: aluminum
- Wire Material: copper
- Internal Impedance: 1,130Ω
- Load Impedance: 47kΩ
- Frequency Response: 12Hz – 30kHz
- Output Voltage: 4mV @ 1kHz
- Channel Separation: 30dB @ 1kHz
- Channel Balance: 1.5dB @ 1kHz
- Compliance: 12×10-6 cm/dyn @ 100Hz
- Recommended Load Capacitance: 100pF – 200pF
- Vertical Tracking Angle: 20°
- Tracking Force: 1.8g – 2.2g
- Recommended Force: 2.0g
- Cartridge Weight: 6.5g
- Replacement Stylus Unit
- RS Olympia
- RS Moonstone
- RS Rainier
